Description
-

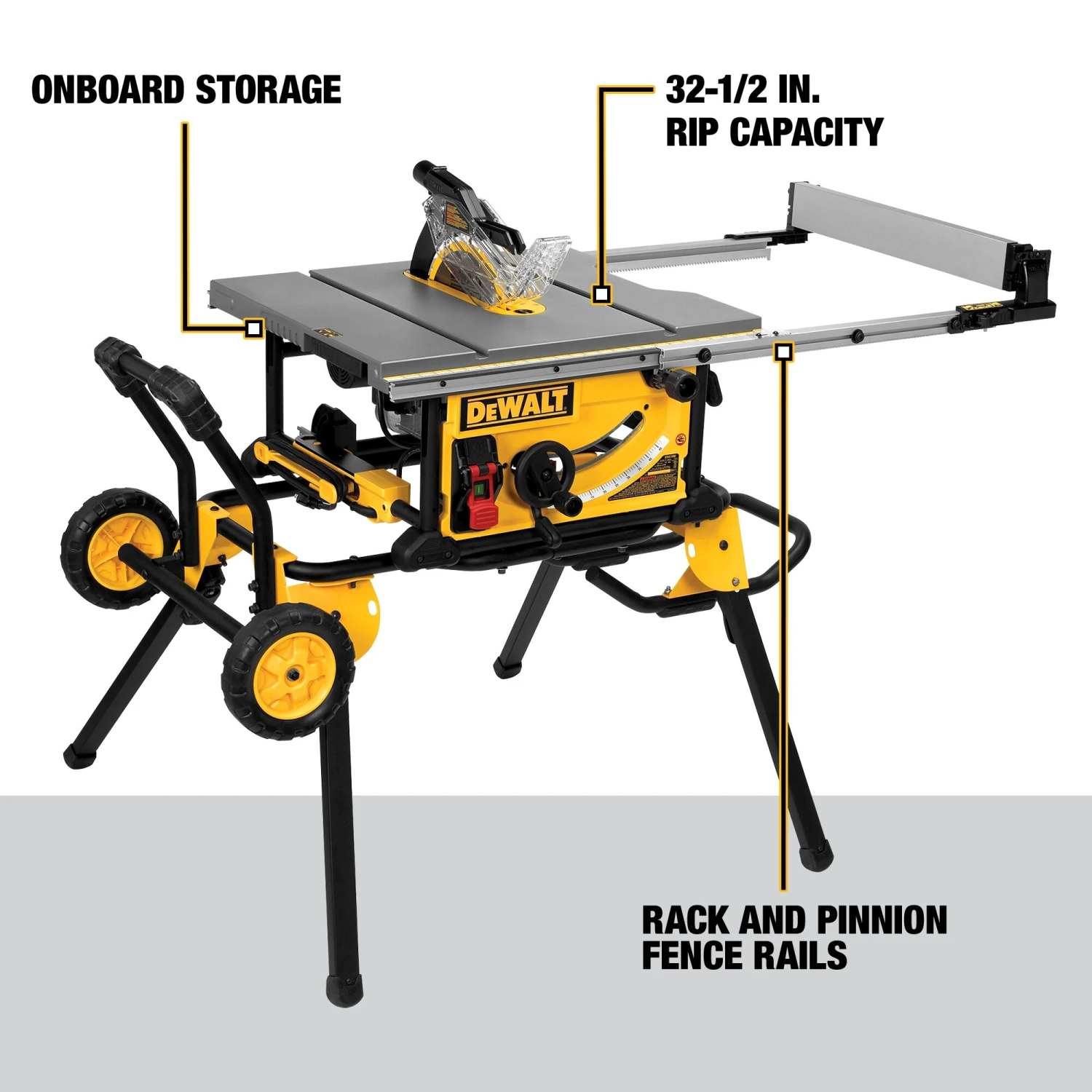

Rack & Pinion Telescoping Fence System Make fence adjustments fast, smooth and accurate
-

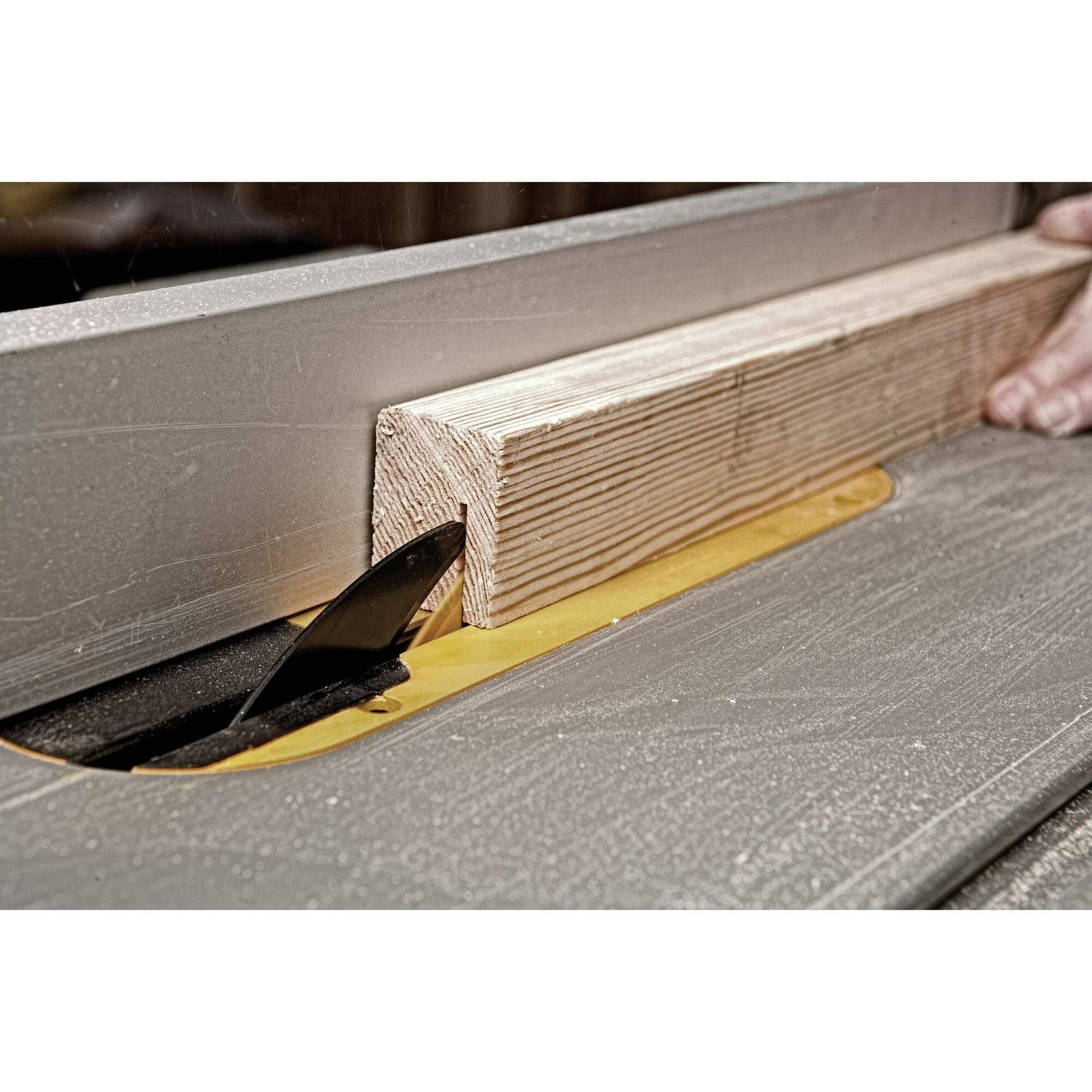

Patented material support, can be used for narrow rip cuts
-
32-1/2″ rip capacity easily cuts a variety of larger shelving and trim materials
-

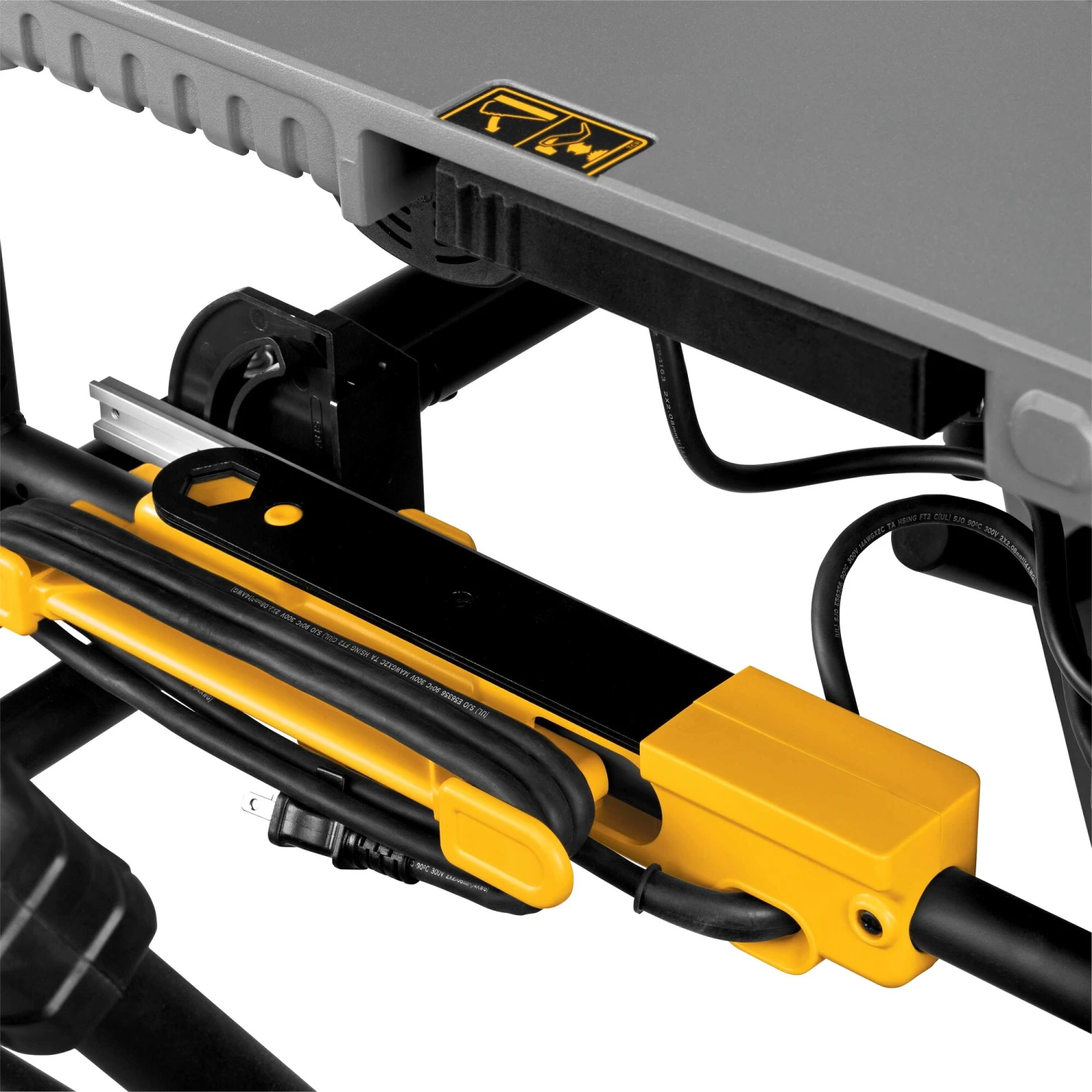

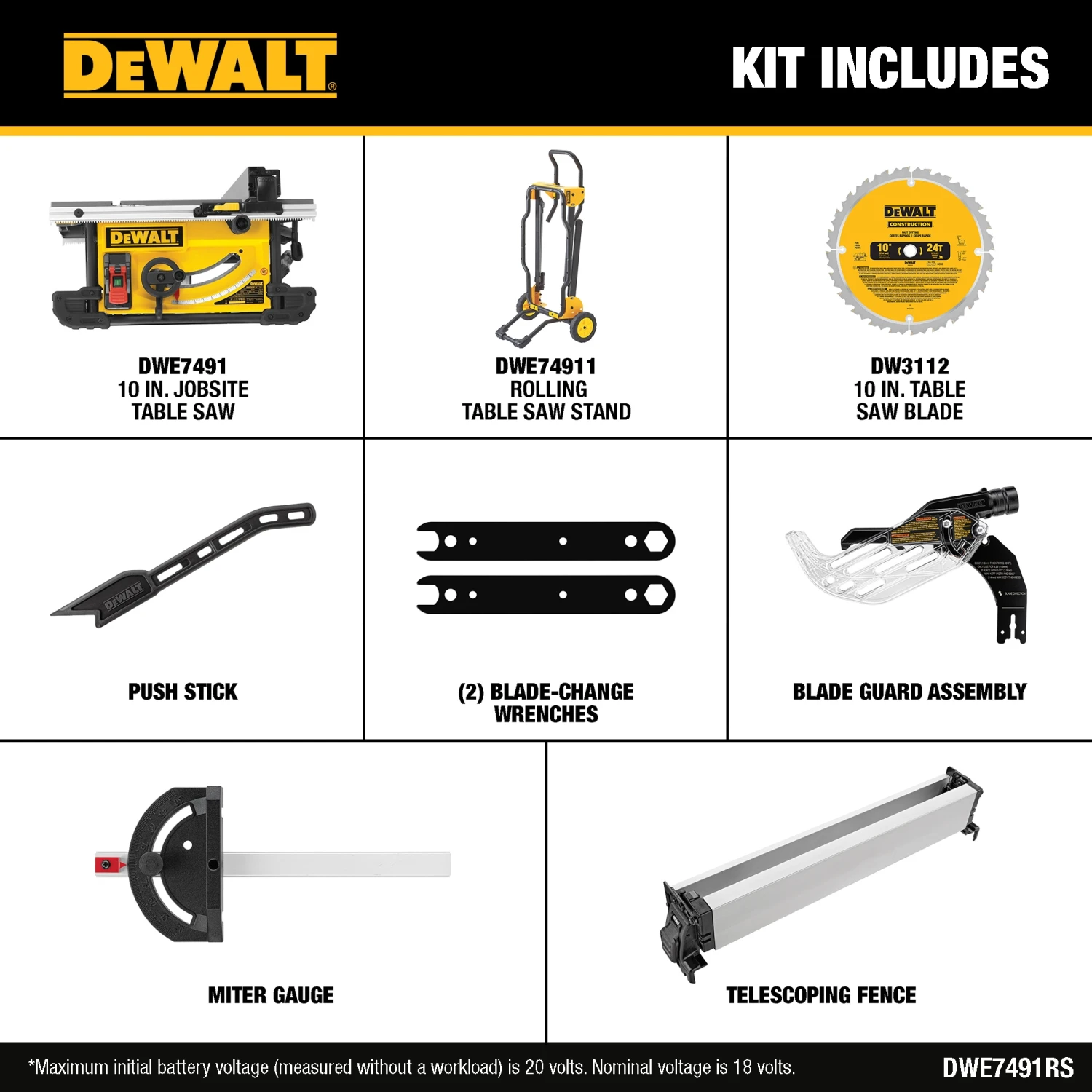

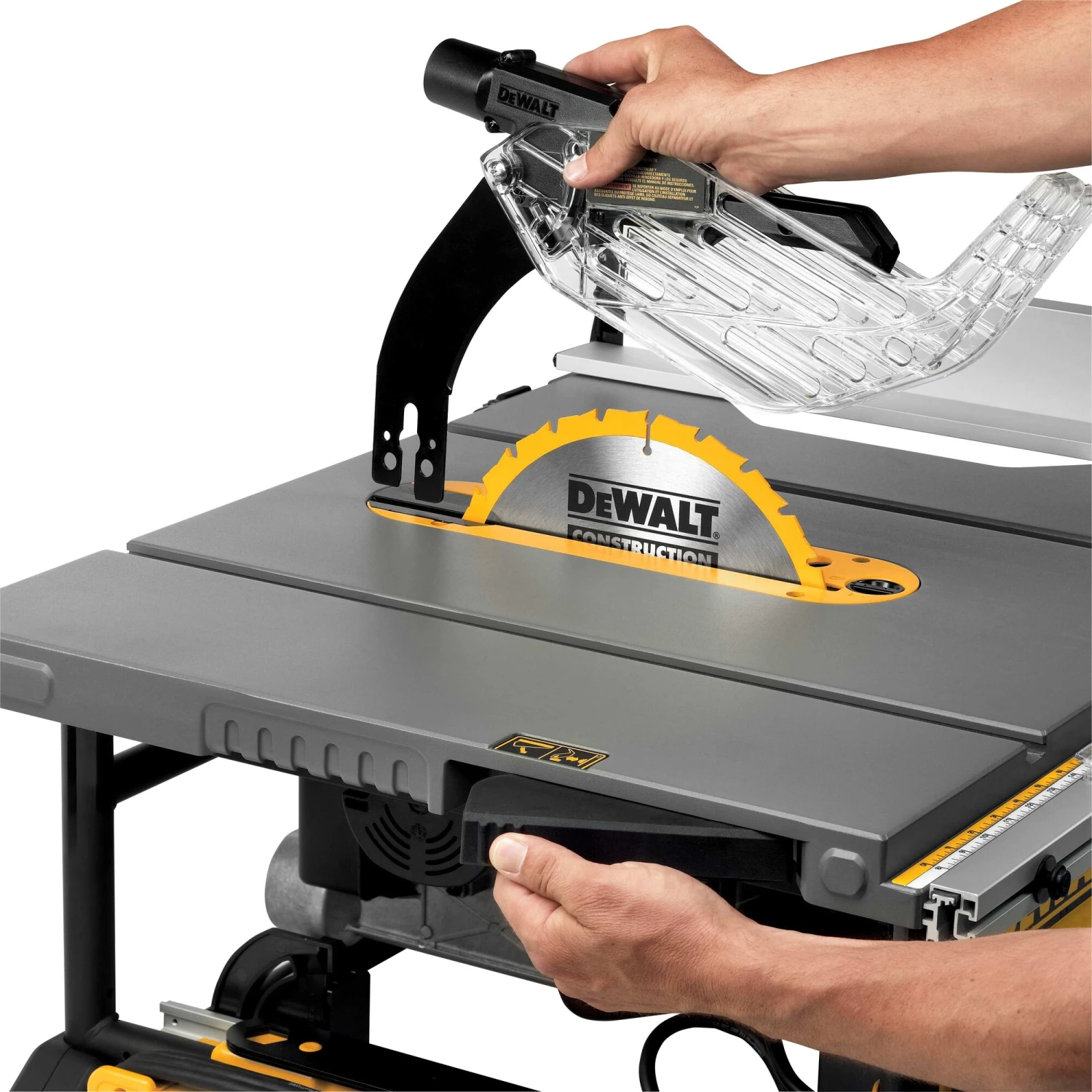

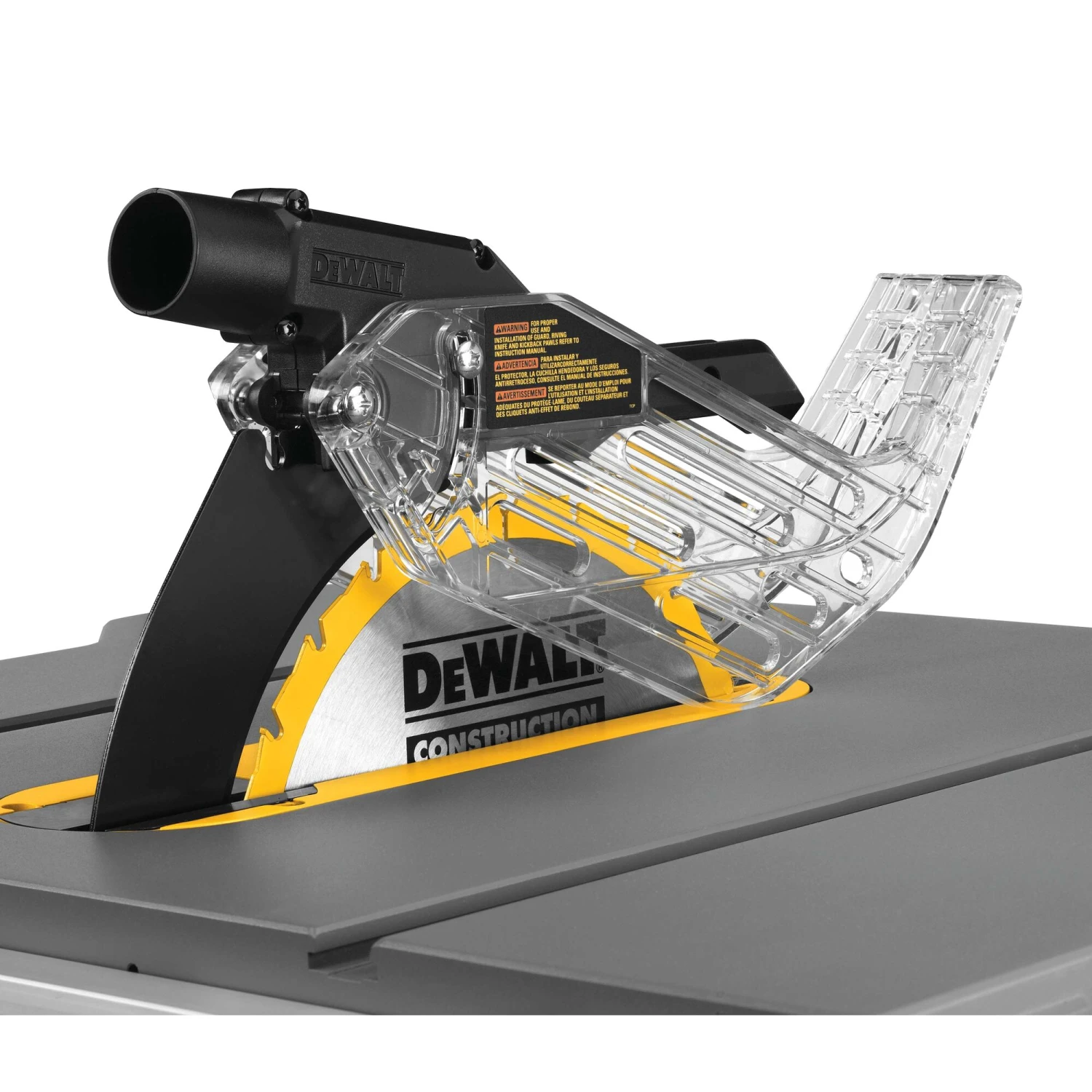

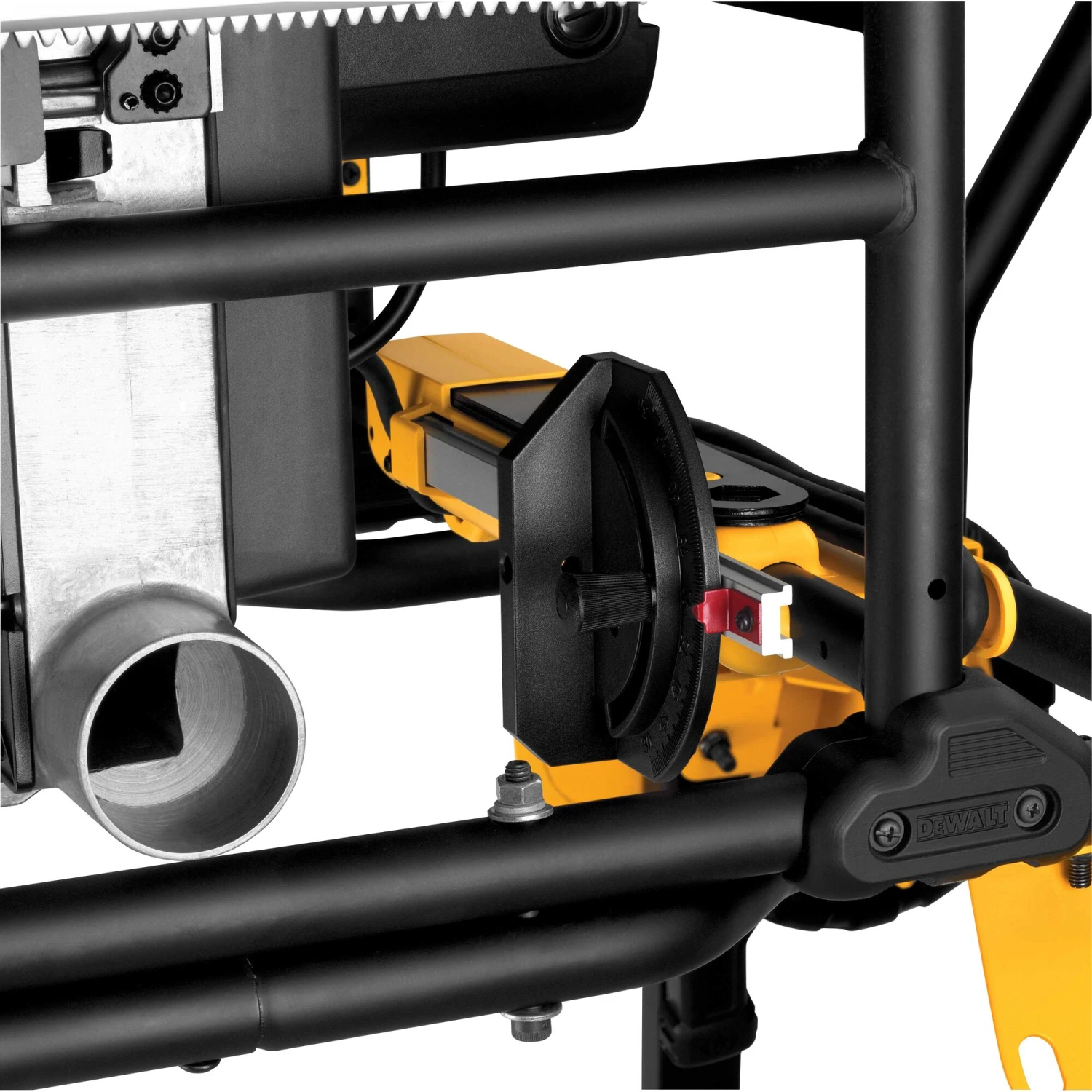

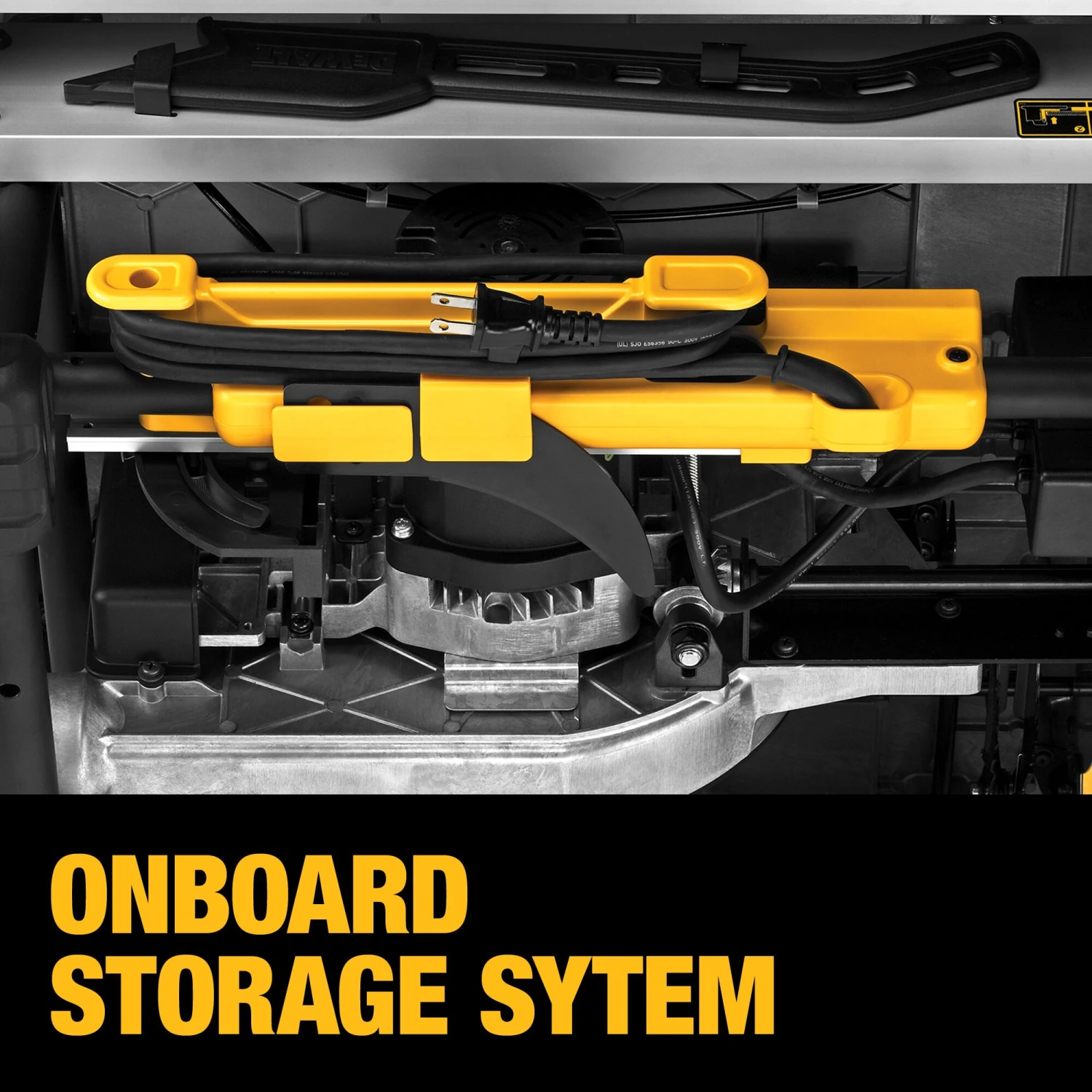

Onboard storage system provides easy access to the Blade Guard Assembly, fence, riving knife, miter gauge, wrenches, push stick, and cord wrap when not in use
-

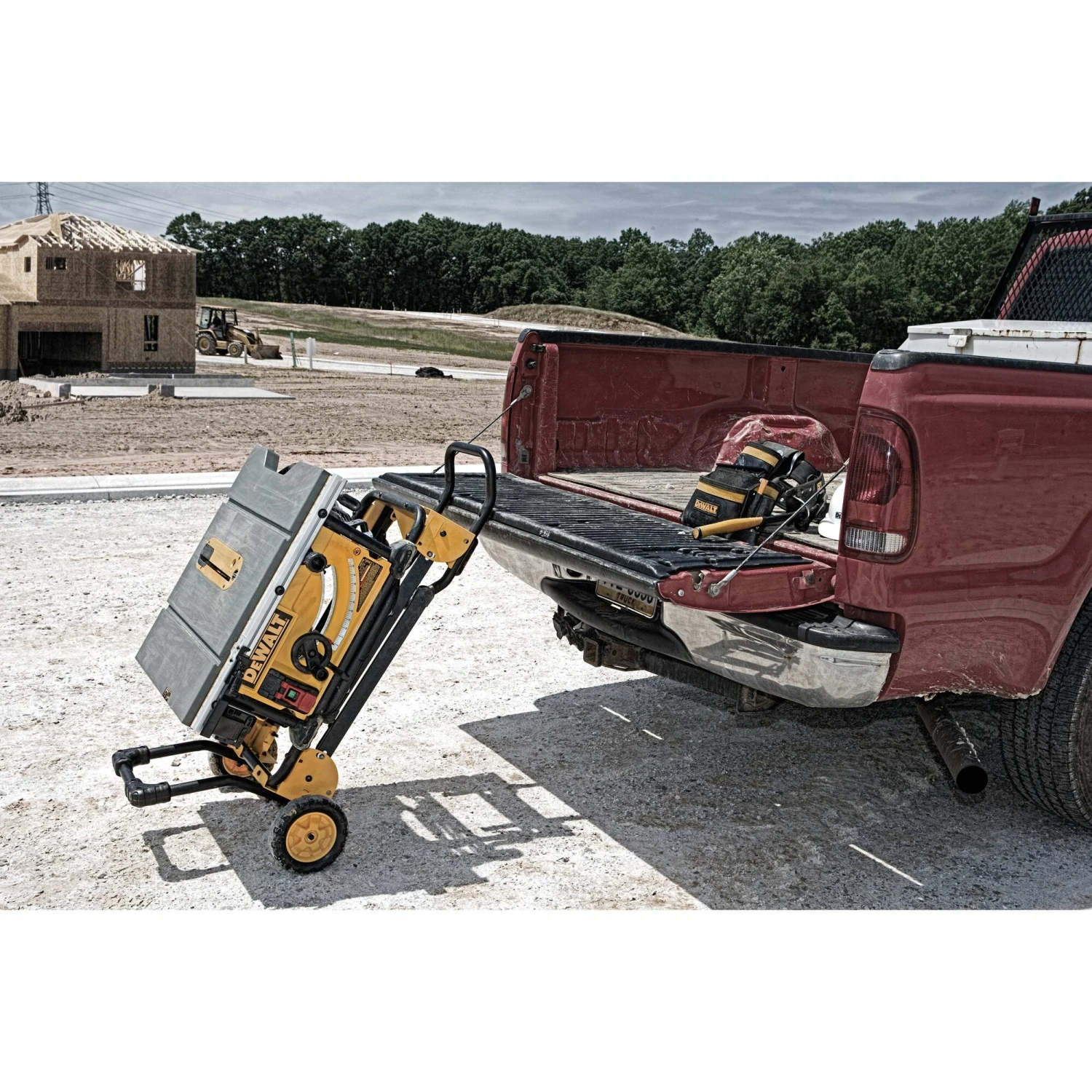

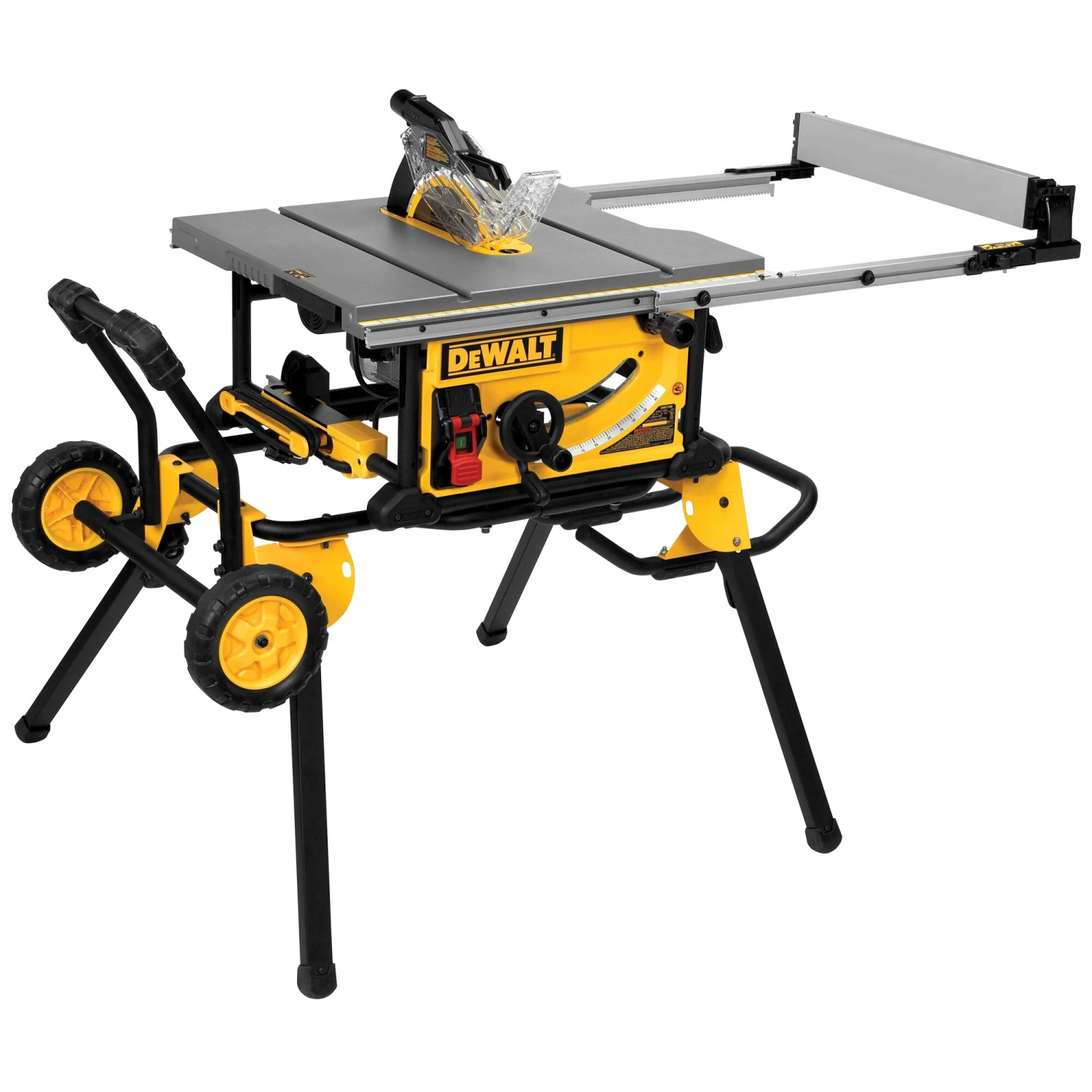

Rolling stand designed for easy set up and breakdown with excellent stability
-

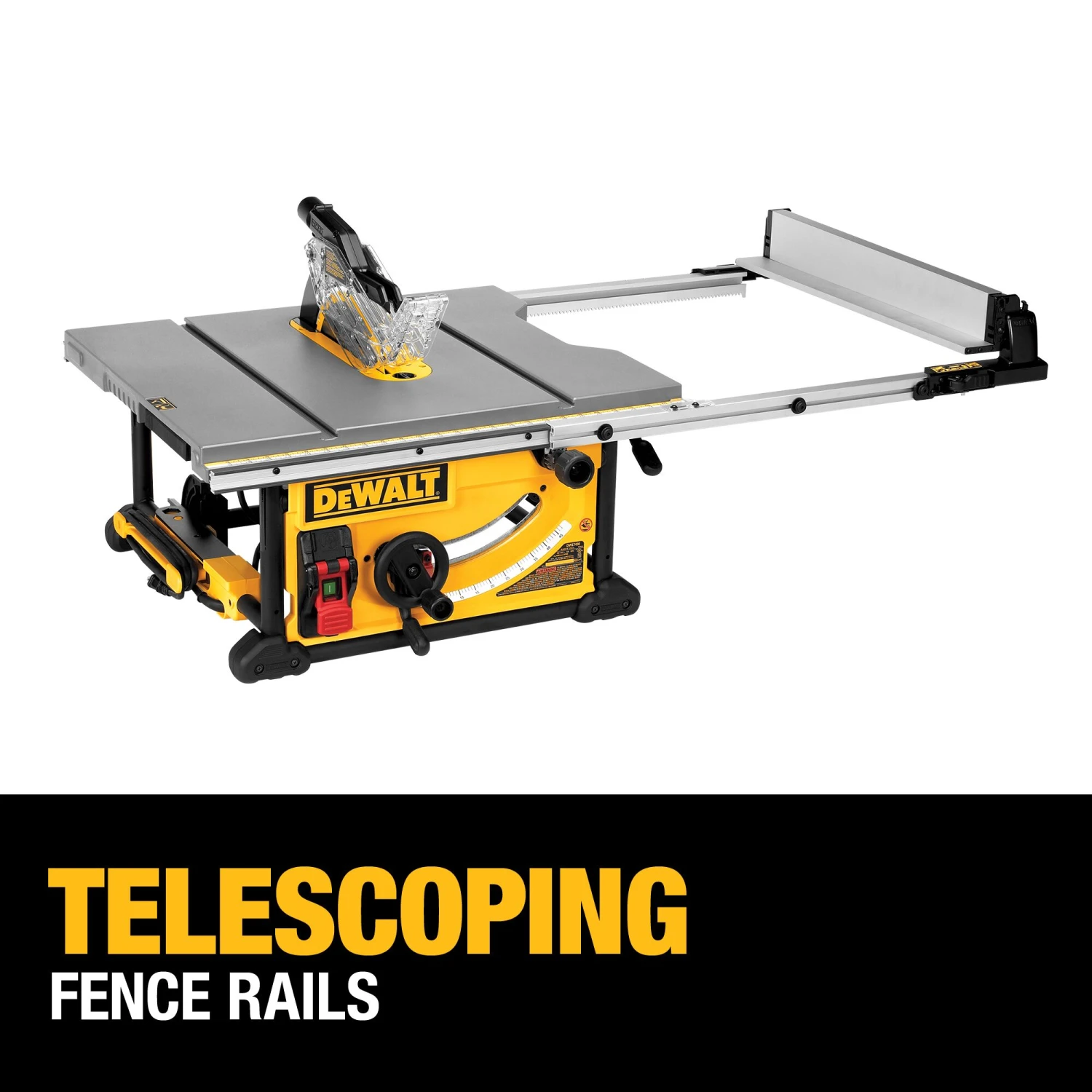

Telescoping fence rails retract to create a small, portable package
-

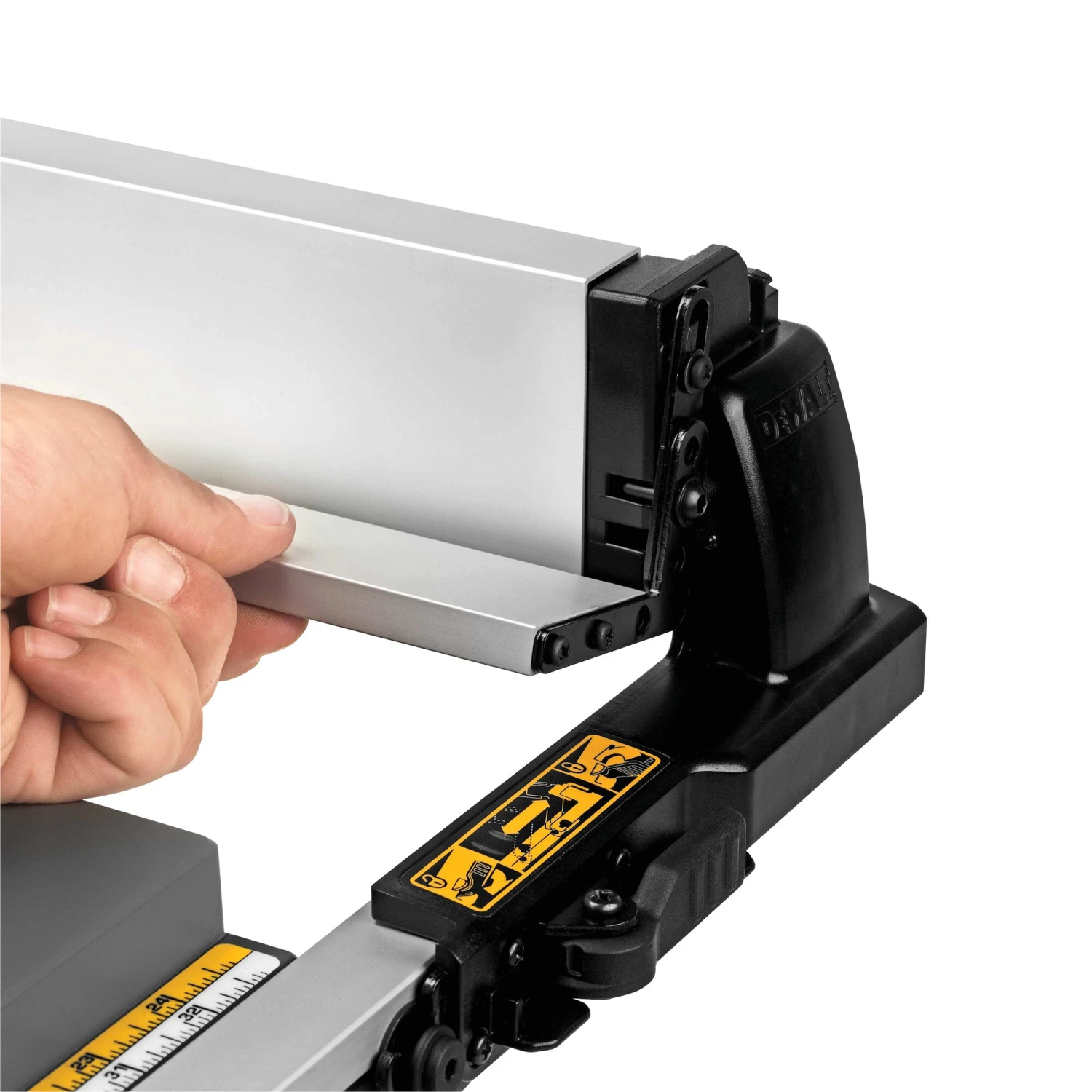

Flip over ripping fence allows for narrow rip cuts
-
15 amp Motor quickly rips through hardwoods with ease
-

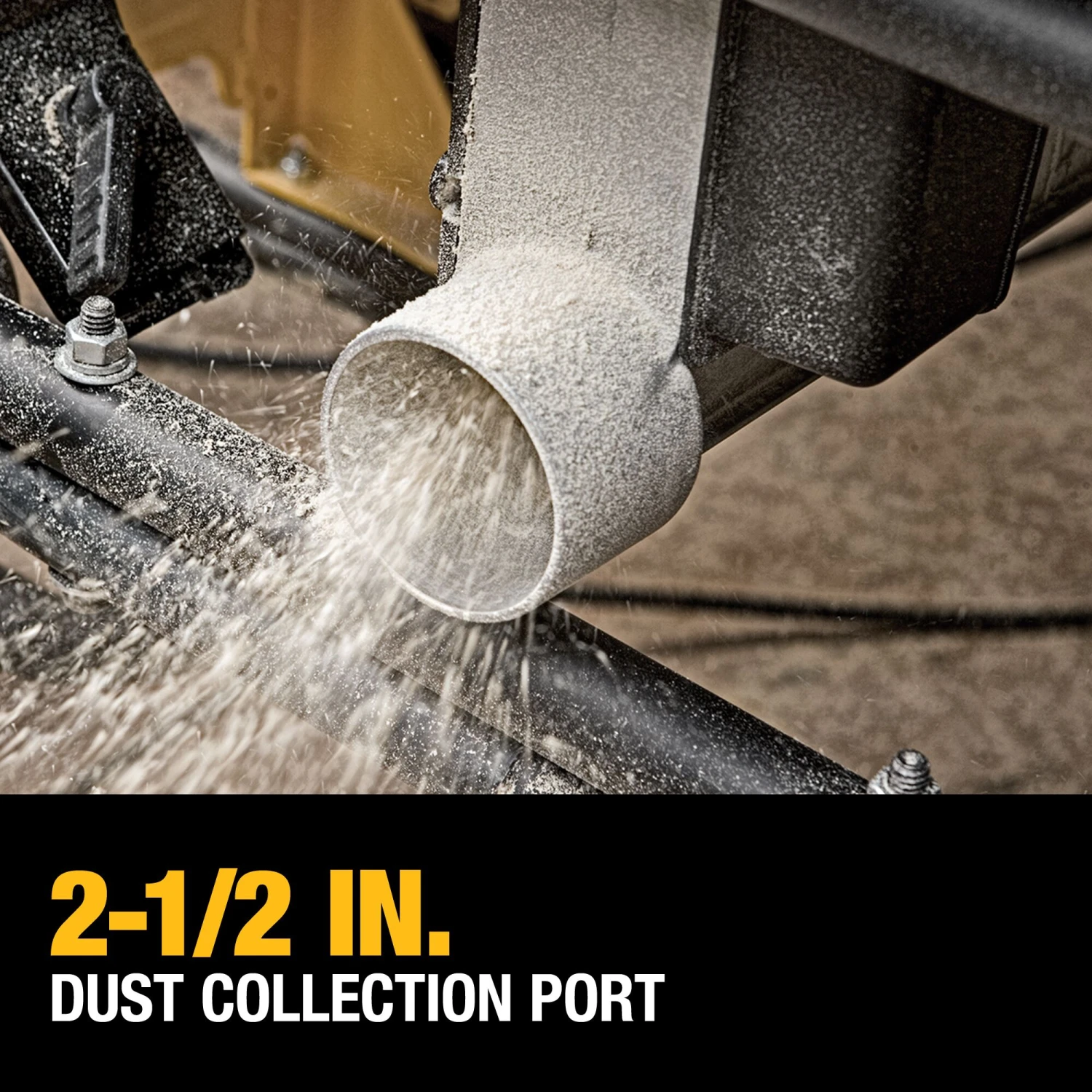

2-1/2″ Dust Collection Port easily connects to a vacuum for efficient dust extraction
Specifications
| Type | Jobsite |
|---|---|
| Blade Material | Carbide-tipped |
| Stand Type | Foldable rolling |
| Arbor Diameter | 5/8-in |
| Bevel Capacity (Degrees) | 45 |
| Blade Size (Inches) | 10 |
| Cutting Depth (Inches) | 3.125 |
| Depth Control | Yes |
| Height (Inches) | 30.25 |
| Left Rip Capacity (Inches) | 24 |
| Maximum Depth at 45 Degrees (Inches) | 2.25 |
| Maximum Depth at 90 Degrees (Inches) | 3.125 |
| Right Rip Capacity (Inches) | 32.5 |
| Saw Blade Diameter | 10-in |
| Table Height (Inches) | 36.5 |
| Table Length (Inches) | 26.25 |
| Table Width (Inches) | 26 |
| Weight (lbs.) | 90 |
| Amps | 15 |
| Auxiliary Handle | No |
| Battery Included | No |
| Blade Included | Yes |
| Caster Platform Included | No |
| Charger Included | No |
| Cordless | No |
| Dust Handling | Port |
| Hybrid Capable | No |
| Maximum Blade Speed (RPM) | 4800 |
| Micro Adjust Rip Fence | No |
| Portable | Yes |
| Repetitive Cut Marking System | No |
| Spindle Lock | Yes |
| Voltage | 0 |
| Worm Drive | No |
| Warranty | 3-year limited |
| CA Residents: Prop 65 Warning(s) | Yes |
| Safety Listing | CSA safety listing |
| UNSPSC | 23101500 |
